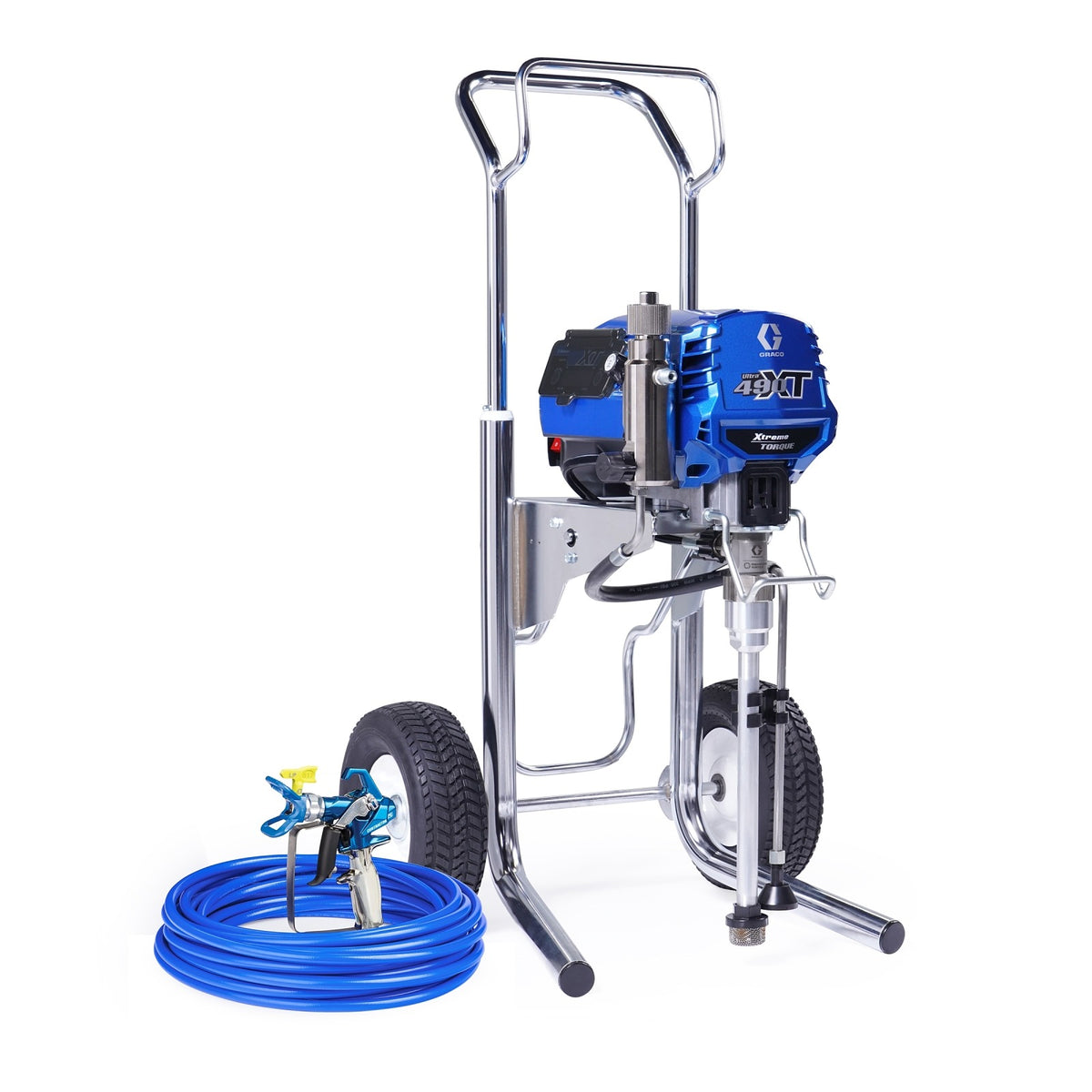

Graco Ultra 490 XT Electric Airless Sprayer, Hi-Boy

Graco Ultra 490 XT Electric Airless Sprayer, Hi-Boy

The Ultra 490 XT Hi-Boy is Graco's midsize electric airless for painters who spray most days, on a rolling Hi-Boy frame that is easy to move around the job site. It runs a 1.3 HP Xtreme Torque motor with Rapid-Response pressure control and a pump built to outlast the competition.

What's in the box

• Ultra 490 XT sprayer, Hi-Boy frame
• Contractor PC spray gun
• RAC X LP 517 SwitchTip
• Airless hose

Why painters choose the XT

• Xtreme Torque motor: Graco's motor designed specifically for airless spraying, with high torque, quiet operation and long motor life.
• Rapid-Response pressure control: monitors and adjusts pressure constantly for a smoother, more even finish. Pressure range is 50 to 3300 PSI, shown on an LED display.
• Two spray modes: Low Pressure Mode (50 to 2000 PSI) for tighter control and finer finishes, and High Pressure Mode (500 to 3300 PSI) for maximum production.
• Endurance Vortex pump: built for long life, with ProConnect quick pump removal.
• TurboClean: Graco's fast pump cleaning system, using about half the water.
• WatchDog pump protection: shuts the pump off when you run out of paint.
• Easy Out filter: simple maintenance and fewer clogs.

Specs

• Motor: 1.3 HP Xtreme Torque
• Maximum working pressure: 3300 PSI
• Maximum tip size: .025"
• Maximum flow rate: 0.7 GPM
• Voltage: 120V
• Minimum generator size: 3500 W
• Frame: Hi-Boy
• Weight: 66 lb
• Fluid outlet: 1/4" NPSM

Who it's for

Repaint crews, contractors and serious DIYers tackling whole-home interiors, exteriors, cabinets and trim who want the rolling convenience of a Hi-Boy frame. It handles latex, primers and most architectural coatings within its tip range.

Keep it running

Pair it with spare gun filters and SwitchTips, and ask us about the pump repair kit so a wear item never slows down a job.
