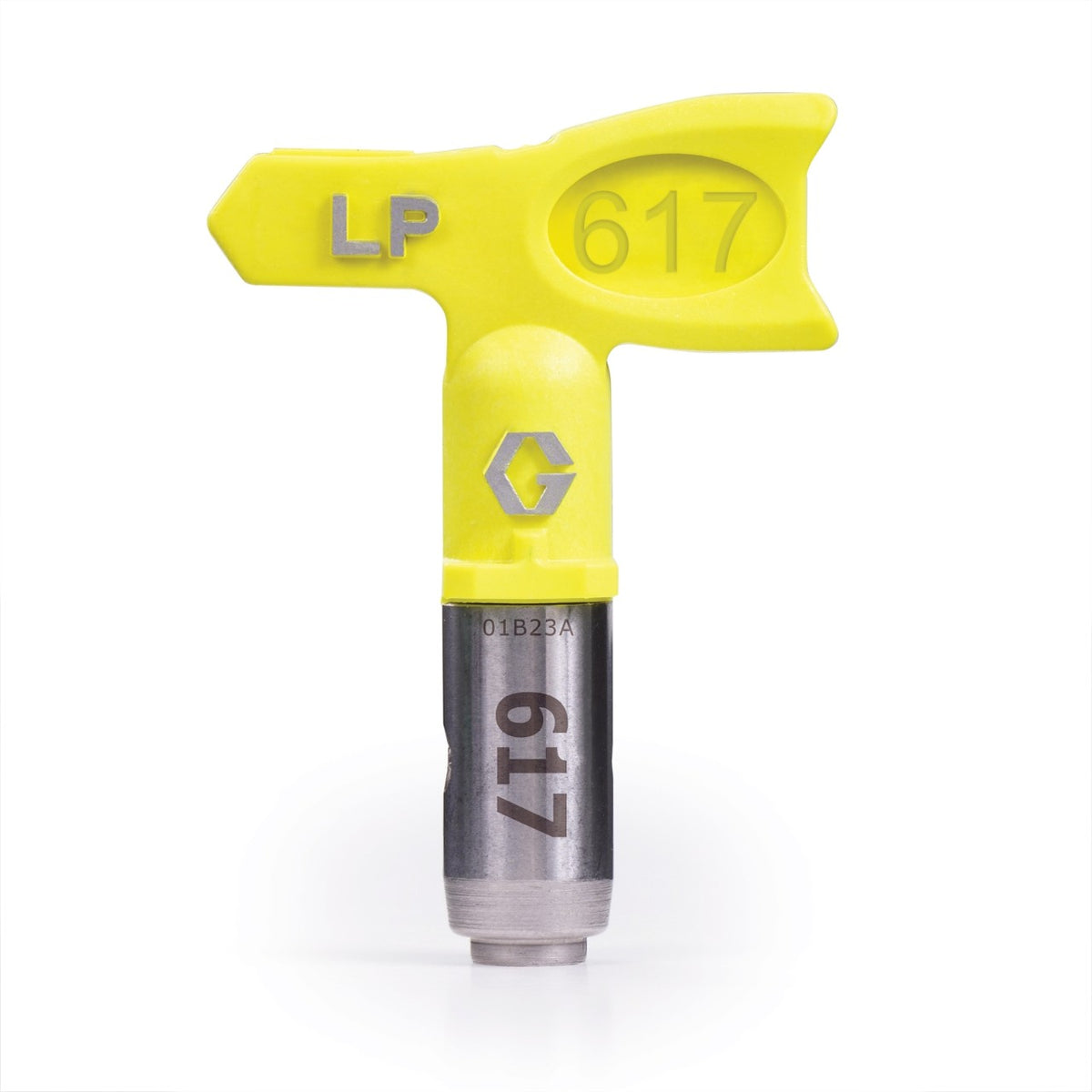

Graco RAC X LP SwitchTip – Low Pressure Airless Spray Tip
Graco RAC X LP SwitchTip – Low Pressure Airless Spray Tip
Couldn't load pickup availability
The Graco RAC X LP SwitchTip sprays at up to 50% lower pressure than a standard tip — giving you a softer fan, less overspray, and up to double the tip life. It's built for high-production work on large, flat surfaces: walls, ceilings, floors, and siding.
Like all RAC X tips, it reverses in the guard to clear a clog in seconds — no disassembly needed.
Features
- Up to 50% lower spraying pressure for better control and less overspray
- SmartTip Technology - atomizes materials with less energy for a superior finish
- Up to 2x tip life compared to standard-pressure tips
- Reverse-A-Clean (RAC) - flip the tip to clear clogs without removing it
- Locking tab keeps the tip seated securely in the guard
- OneSeal tip gasket installs by hand, no tools required
- Works with any airless sprayer
Best For
Large surface areas — walls, ceilings, floors and siding — where speed and coverage matter as much as finish quality. Ideal for contractors and high-production jobs.
LP vs. LTX — Which One Do I Need?
LP tips are built for wide, fast coverage on big flat surfaces at high production speed. LTX tips are the more general-purpose choice for typical residential walls and ceilings. If you're painting a whole house or a large commercial space, LP is usually the better fit; for standard room-by-room work, LTX covers most jobs.
Choosing Your Size
| Size | Fan Width | Orifice |
|---|---|---|
| LP313 | 6–8″ | 0.013″ |
| LP315 | 6–8″ | 0.015″ |
| LP317 | 6–8″ | 0.017″ |
| LP415 | 8–10″ | 0.015″ |
| LP417 | 8–10″ | 0.017″ |
| LP515 | 10–12″ | 0.015″ |
| LP517 | 10–12″ | 0.017″ |
| LP519 | 10–12″ | 0.019″ |
| LP521 | 10–12″ | 0.021″ |
Not sure which orifice to pick? Check the technical data sheet for the coating you're spraying, or contact us and we'll match it for you.
