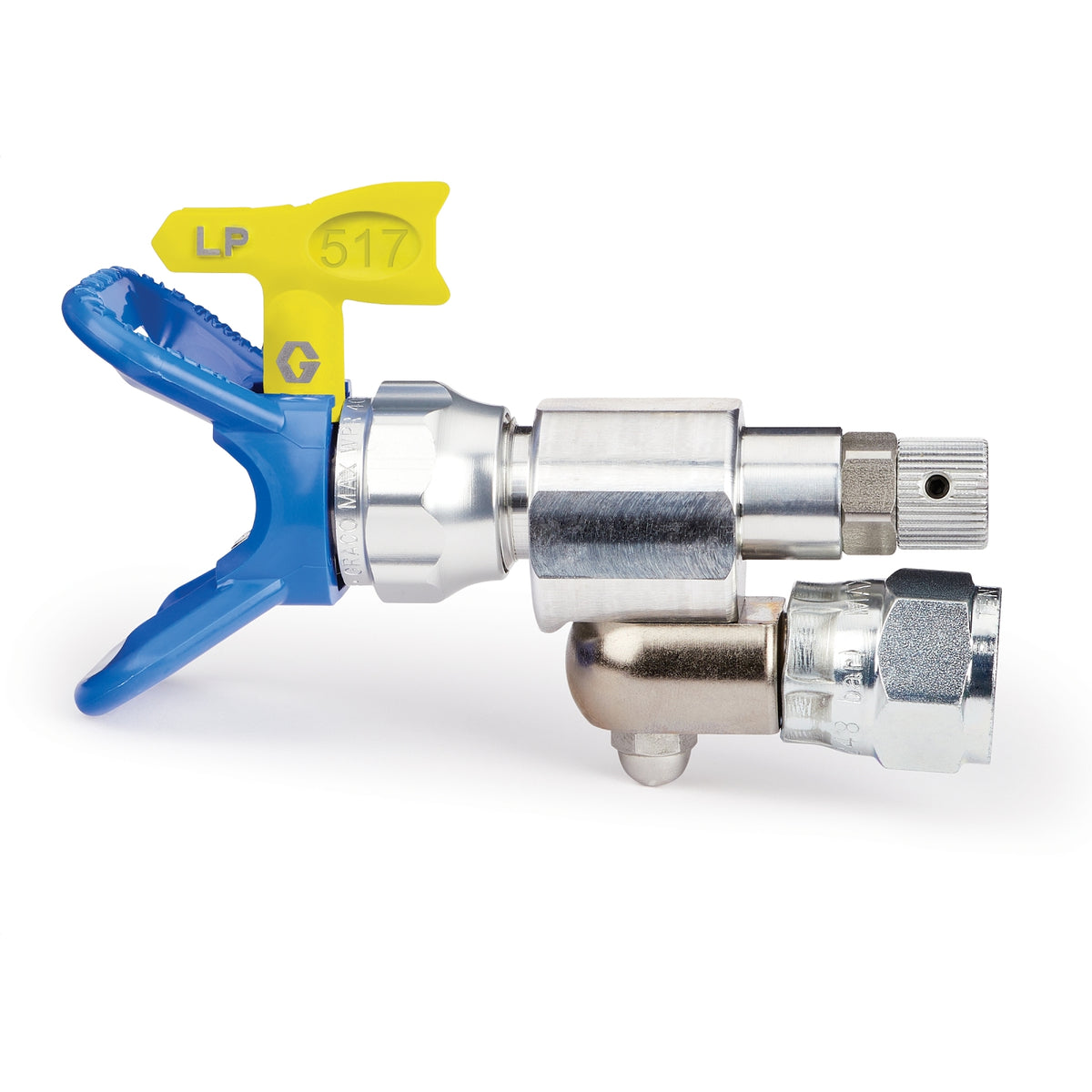

Graco CleanShot Shut-Off Valve

Graco CleanShot Shut-Off Valve

If you spray with a pole or tip extension, you already know the problem: when you let go of the trigger, the paint still sitting in the extension keeps dribbling out of the tip. The CleanShot moves the shut-off to the tip itself, so the flow stops right where the paint leaves the gun. The result is cleaner edges, fewer spits, and less touch-up.

What it does

• Needle valve at the tip: shuts fluid off at the tip for a clean pattern with no spitting or dripping
• 180 degree tip swivel: lets you angle the tip for walls, ceilings, and awkward spots without twisting the whole extension
• Pressure-actuated: opens at a minimum of 700 PSI and is rated to 3600 PSI
• Built for extensions. Graco's dealers typically recommend it for extensions over about 20" (50 cm)

Fits

Graco airless guns and extensions with 7/8" tip threads, including Contractor and FTx guns, Magnum SG-series guns, in-line valves, tip extensions, and pole-gun extensions. It should also work with other brands that use the same 7/8" thread.

Good to know

• Because it's pressure-actuated, it needs at least 700 PSI to open. Keep your sprayer set above that for proper operation.
• Pair it with a RAC X Tip Extension for the cleanest results on ceilings and high walls.

Specs

• Maximum working pressure: 3600 PSI (248 bar)
• Minimum operating pressure: 700 PSI (48 bar)
• Inlet: 1/4" NPSM
• Outlet: 7/8" UNF
